RFS
1.New soft mask design,high refresh and high definition.
2.IP65 waterproof,which is high performance waterproof,dust-proof and anti-rust.
3.It can work well for all kinds of outdoor heavy weather,and also suitable for indoor gymnasiums.

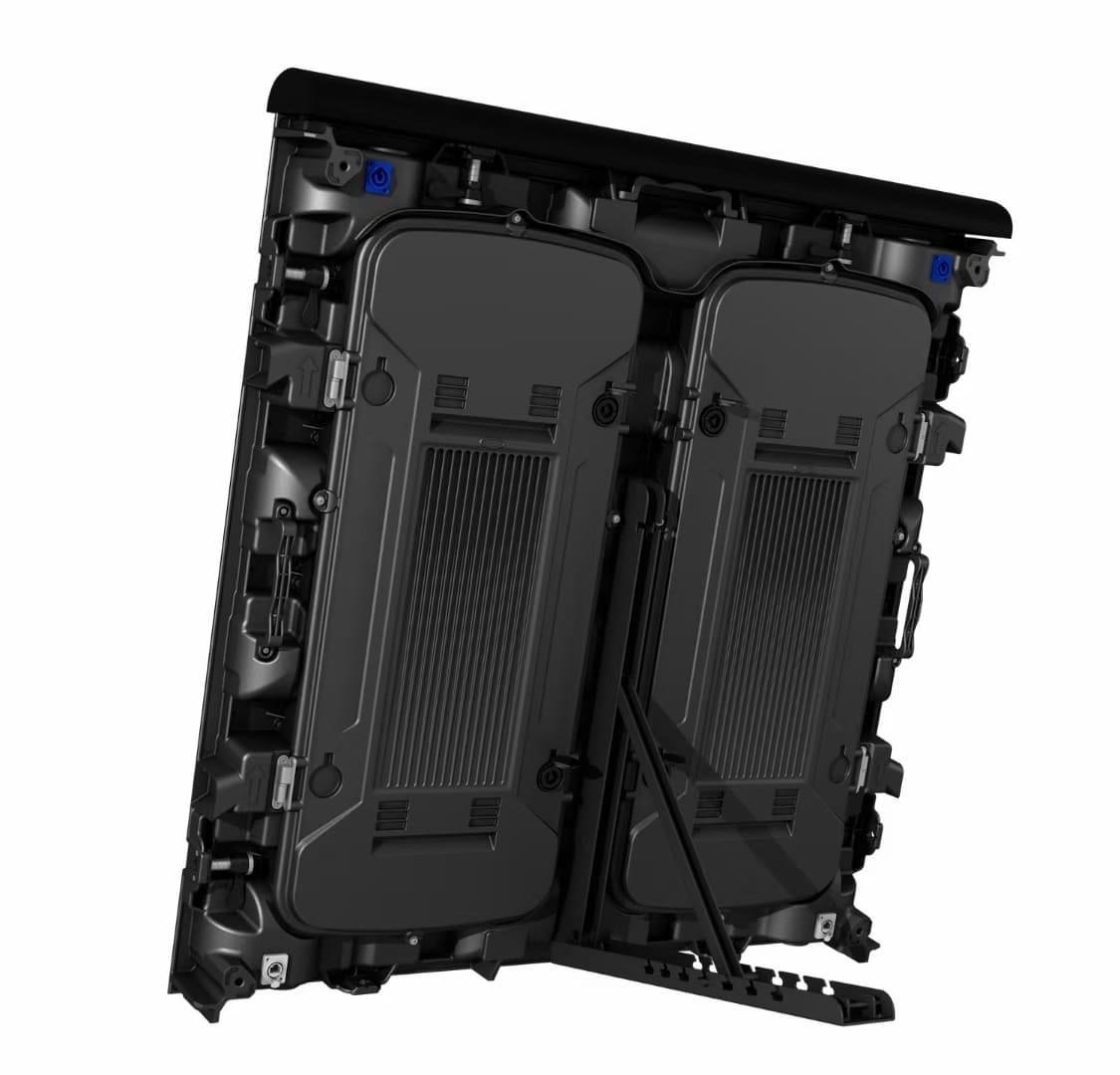

4.The panels adopt unique Angle adjustable design,which can be adjusted different panel's Angle (75°~ 90°)according to the use angel of requirements,let all the audience can see the content of the live broadcast installation.
SPECIFICATIONS

Item

RFS Series

RFS Series

RFS Series

Pixel Pitch

5mm

8mm

10mm

LED Encapsulation

SMD2727

SMD3535

SMD3535

Scan Mode

1/8 Scan

1/4 Scan

1/2 Scan

Pixel Per Sq.m

40,000Pixel

15,625 Pixel

10,000 Pixel

Module Size(W*H)

320*160mm

320*160mm

320*160mm

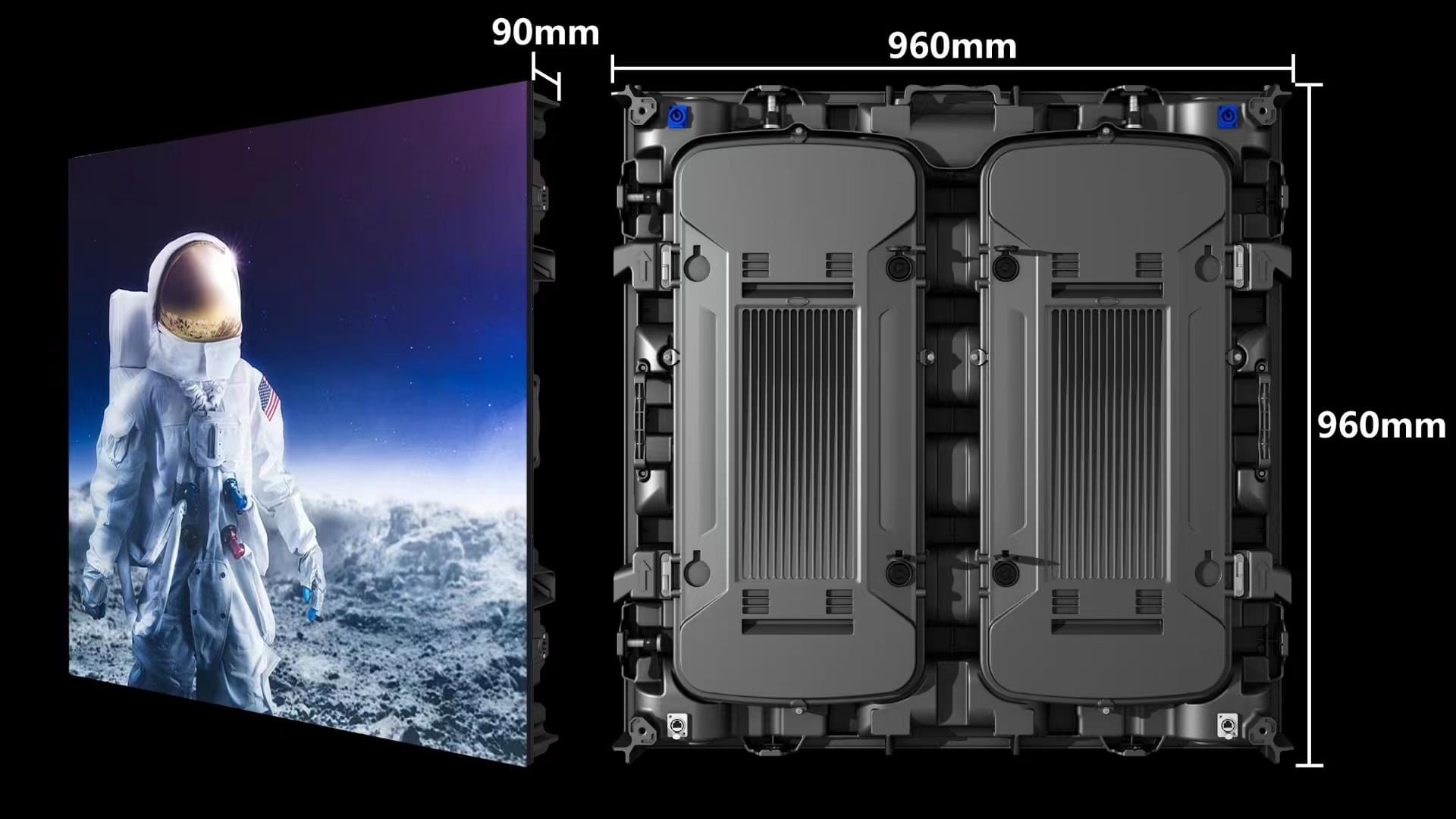

Cabinet Size(W*H*D)

960*960mm

960*960mm

960*960mm

Cabinet Weight

31KG/Pieces

31KG/Pieces

31KG/Pieces

Brightness(Nits)

6000

6500

7000

Maintenance methods

Rear/Front Serviceable

Cabinet Material

Aluminum

Refresh Rate

1920hz-3840hz

Color Temperature

6500K ±500(Adjustable)

Grey Scale

14-16bits

Average Power Consumption

400Watt/㎡

Max Power Consumption

800Watt/㎡

IP Protection

IP65

Operating Temperature

-20°C to 50°C

Working Voltage

110-240Volt(50-60hz)
